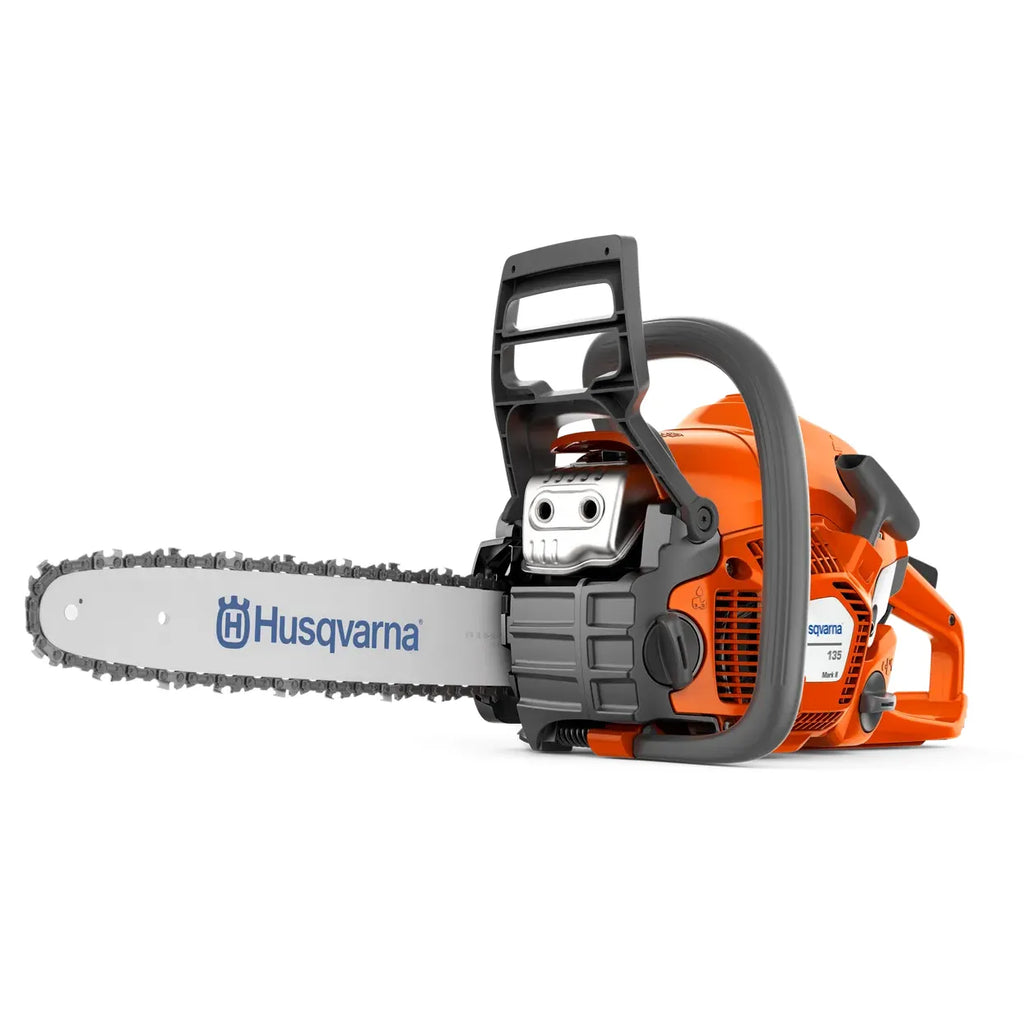

HUSQVARNA 135 Mark II Chain Saw - 38 CC - 2.1 HP

Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.

Engine
Chain speed at max power	55 fts
Cylinder displacement	38 cm³
Output shaft power1	2.1 hp
Torque, max.	1.84 Nm
Torque, max. at rpm	8,000 rpm
Clutch engagement speed (±120)	4,000 rpm
Electrode gap	0.022 in
Idling speed	3,000 rpm
Ignition module air gap	0.012 in
Maximum power speed	9,000 rpm
Oil pump type	Automatic
Spark Plug	NGK BPMR7A
Equipment
Recommended bar length, min	14 in
Pitch	3/8" mini
Recommended bar length, max	16 in
Chain type	S93G
Bar length	40 cm
Bar length (inch)	16 in
Sprocket type	Spur 6
Gauge	.050"
Dimensions
Weight (excl. cutting equipment)	10.36 lbs
Sound and noise
Sound pressure level at operators ear	102 dB(A)
Sound power level, guaranteed (LWA)	116 dB(A)
Sound power level, measured	114.34 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	5.5 m/s²
Equivalent vibration level (ahv, eq) front handle	3.72 m/s²
Lubricant
Oil tank volume	0.549 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)2	804 g/kWh
